A Tcl Web Service client for KnowledgeTree Document Management System

Sometime last year, I dabbled with KnowledgeTree's web services and (somehow I've forgotten why) I ended up with a Tcl client to perform a document upload.

Before I lose this chunk of code or forget about it altogether (and it happens a lot), I decided to post it here:


package require SOAP
package require http
package require TclCurl

set prx "http://192.168.211.128/ktwebservice/webservice.php"
set url "http://192.168.211.128/ktwebservice/upload.php"
set usr "admin"
set pas "admin"
set ipa "any"

set upf "upload-me.txt"
set typ "multipart/form-data"

proc log_it { chn msg } {
set stm [clock format [clock seconds] -format "%Y/%m/%d %H:%M:%S %a"]
puts $chn "$stm : $msg"
}

SOAP::create kt_login \
-proxy $prx \
-params { "username" "string" "password" "string" "ip" "string"} \
-name login
SOAP::create kt_add_document \
-proxy $prx \
-params { "session_id" "string" "folder_id" "int" "title" "string" "filename" "string" \
"documentype" "string" "tempfilename" "string" } \
-name add_document
SOAP::create kt_logout \
-proxy $prx \
-params { "session_id" "string"} \
-name logout

set log "debug.log"

if { [catch {open $log a} out] } {
puts stderr "Error: $out"
set out "stderr"
}

set rsp [kt_login $usr $pas $ipa]
set sta [lindex $rsp 1]
set ses [lindex $rsp 3]
log_it $out "Login: status ($sta); session ($ses)"

set opt "session_id $ses action A"
set crl [curl::init]
set rsp [$crl configure -url $url -bodyvar rsp -post 1 \
-httppost [list name "file1" file $upf contenttype $typ] \
-httppost [list name "session_id" contents $ses] \
-httppost [list name "action" contents A] \
-httppost [list name "output" contents php] \
]
catch { $crl perform } curlErrorNumber
if { $curlErrorNumber != 0 } {
error [curl::easystrerror $curlErrorNumber]
}
$crl cleanup

log_it $out "Upload: response ($rsp)"

set ps1 [string first "\"tmp_name\";s:" $rsp 0]
set ps2 [string first ":\"" $rsp [expr $ps1 + 12]]
set ps3 [string first "\";s:5:\"error\"" $rsp 0]
set tmp [string range $rsp [expr $ps2 + 2] [expr $ps3 - 1]]

# Define folder where to upload files
set fld 1;
set ttl "My Document";
set doc "Default"

set rsp [kt_add_document $ses $fld $ttl $upf $doc $tmp]
log_it $out "Add Document: response ($rsp)"

set rsp [kt_logout $ses]
log_it $out "Logout: response ($rsp)"

close $out

The upload facility is implemented by upload.php and returns a response coming out of php's serialize() function. I've mangled upload.php to return a response in xml or json format. The code changes are posted in the Knowledgetree community forum here.

The above Tcl code digests the php's serialize() output.

For xml output, here are the relevant changes:

set crl [curl::init]
set rsp [$crl configure -url $url -bodyvar xml -post 1 \
-httppost [list name "file1" file $upf contenttype $typ] \
-httppost [list name "session_id" contents $ses] \
-httppost [list name "action" contents A] \
-httppost [list name "output" contents xml] \
]
...
set top [dom parse $xml]
set sel [$top selectNodes /results/uploads/document/tmp_name/text()]
set tmp [$sel nodeValue]
$top delete

And for json..

set rsp [$crl configure -url $url -bodyvar rsp -post 1 \
-httppost [list name "file1" file $upf contenttype $typ] \
-httppost [list name "session_id" contents $ses] \
-httppost [list name "action" contents A] \
-httppost [list name "output" contents json] \
]
...
set ps1 [string first "\"tmp_name\":\"" $rsp 0]
set ps2 [string first "\",\"error\"" $rsp 0]
set tmp [string range $rsp [expr $ps1 + 12] [expr $ps2 - 1]]

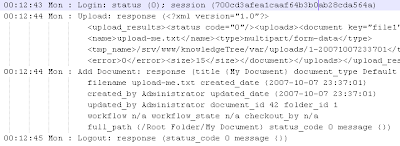

Check the contents of debug.log for any errors. A successful operation produces this output:

4 comments:

Nils said...

Fantastic script! Thank you so much for sharing!

Did struggle with the tcl installation though and in my case, passing variables from a visual basic script (vbs) to the tcl script. However, I got it sorted out. Cost me a day, but it's worth the effort.

So to give people some pointers and perhaps save them some time here is my 50 cents:

1. install Activestate TCL
get it here
2. install tclcurl package get it here and run SetUp.tcl
3. open a cmd prompt (start->run->cmd.exe
4. type: teacup update-self
5. type: teacup install SOAP
6. Now your tcl installation is ready to run the script above. You can test this by doubleclicking the script or run it from the command line with wish.exe or tclsh85.exe

To pass arguments (variables) from a script to the tcl script just add them to the command line, comma seperated. for instance: tclsh85.exe myscript.tcl myvar1, myvar2, myvar3

To catch these within tcl use: set var1 [lindex $argv 0]
set var2 [lindex $argv 1]

There you have it, my 50 cents
